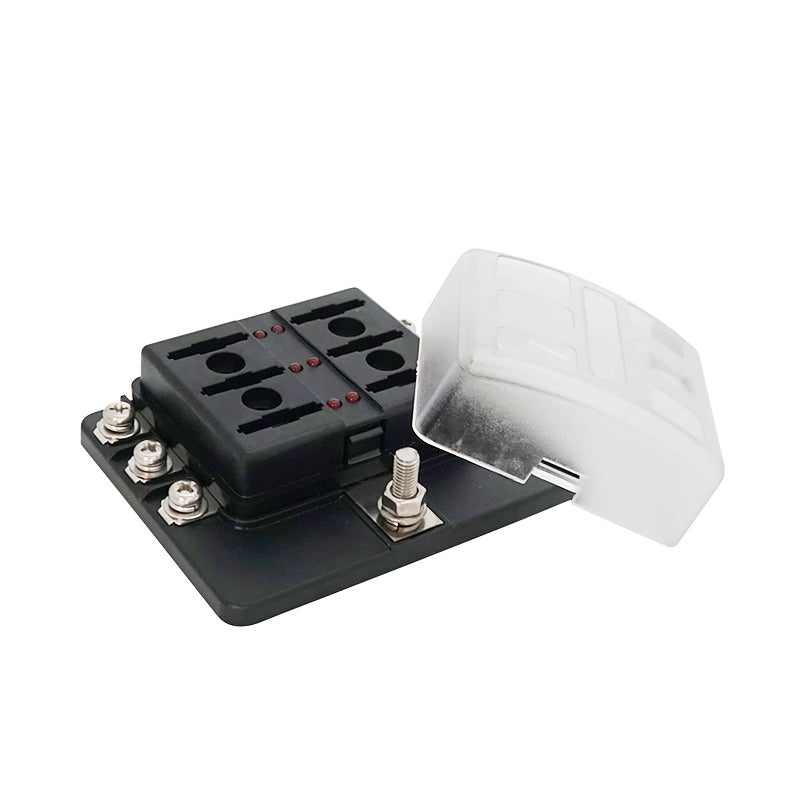

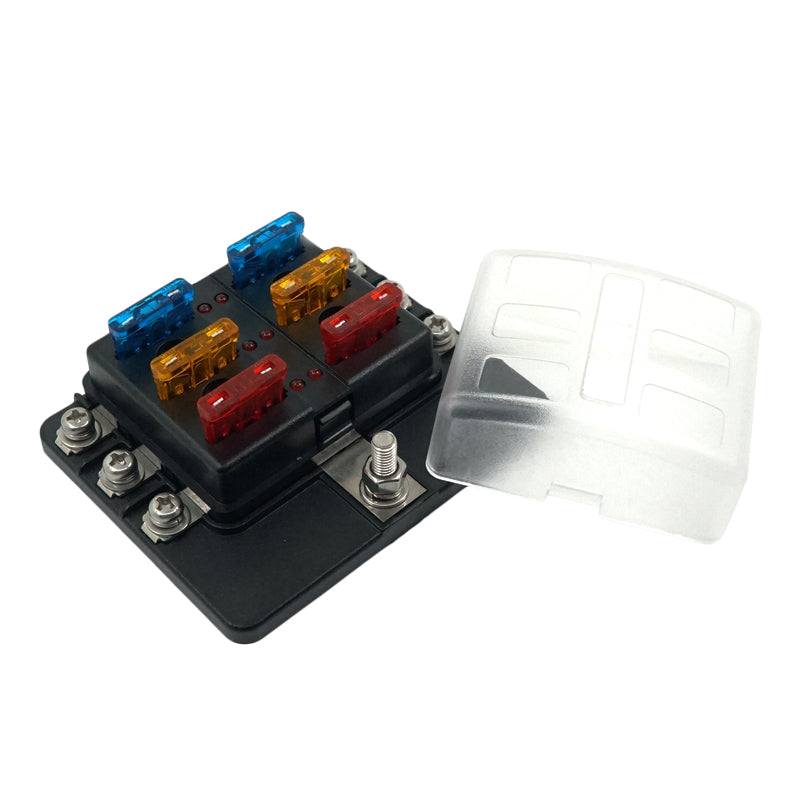

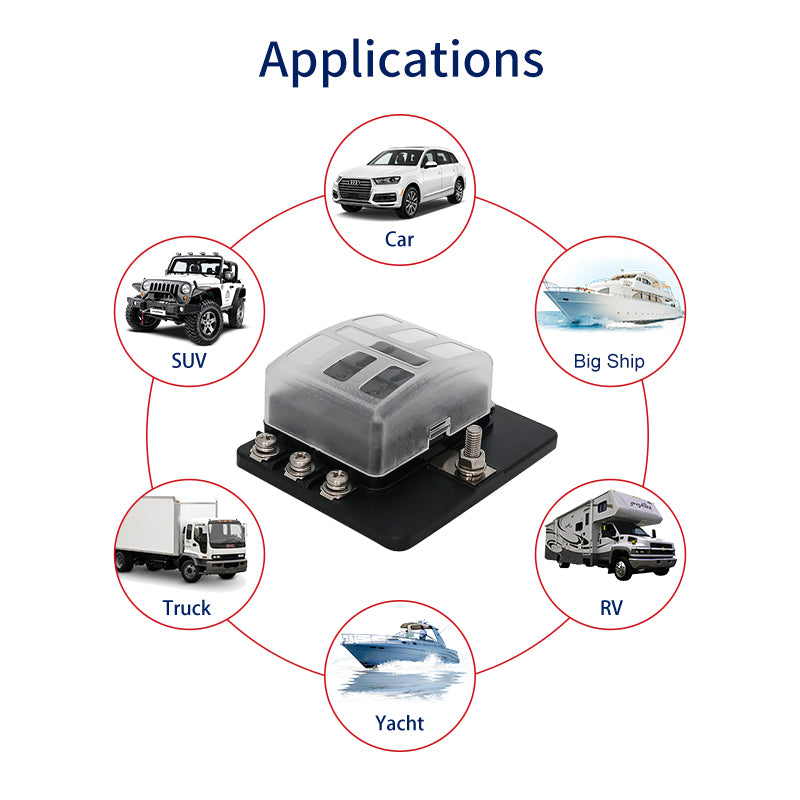

Genuine Marine 6 Way Fuse Block Bolt Terminal ATS For Car Boat Marine

Specification:

Product Name: 6-Way Blade Fuse Box Standard Circuit Fuse Holder Box

Accepting Fuse: Standard Blade Fuse (ATO / ATC / ATS)

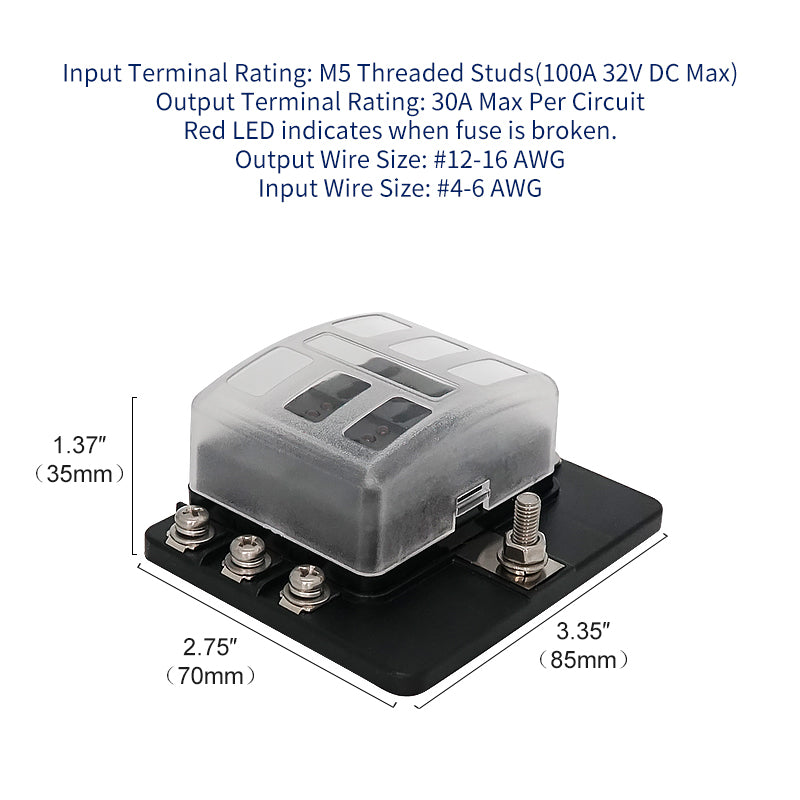

Dimension: 70*85*35mm(2.75*3.35*1.38 inches)

Connection Port: Spiral

Capacity: 100A

Maximum Per Current: 30A

Volt Rating: 32V DC

Number Of Fuse / Circuits Slots: 6

Colour: Black

Weight: 0.11KG

Electrical:

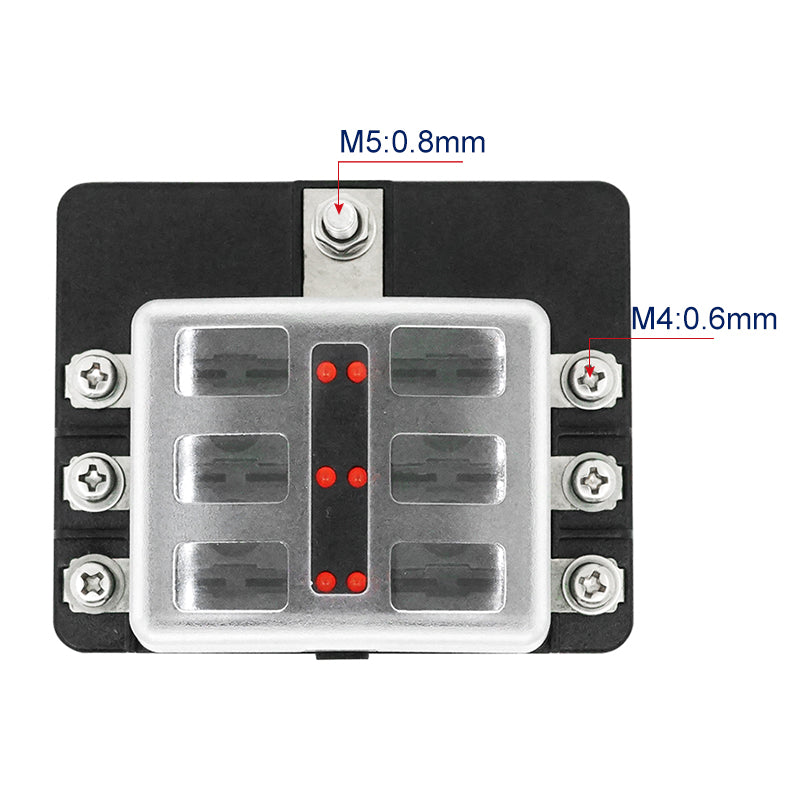

Input Terminal Rating: M5 Threaded Studs(100A 32V DC Max)

Input Wire Size: #4-6 AWG

Output Terminal Rating: 30A Max Per Circuit

Output Wire Size: #12-16 AWG

Red LED indicates when fuse is broken.

Material:

Housing Base: Polybutylene Terephthalate(PBT)

Cap: Polycarbonate(PC)

Terminal: Nickel Plated Copper

Screw: Stainless Steel

Label: Polypropylene(PP) x 40

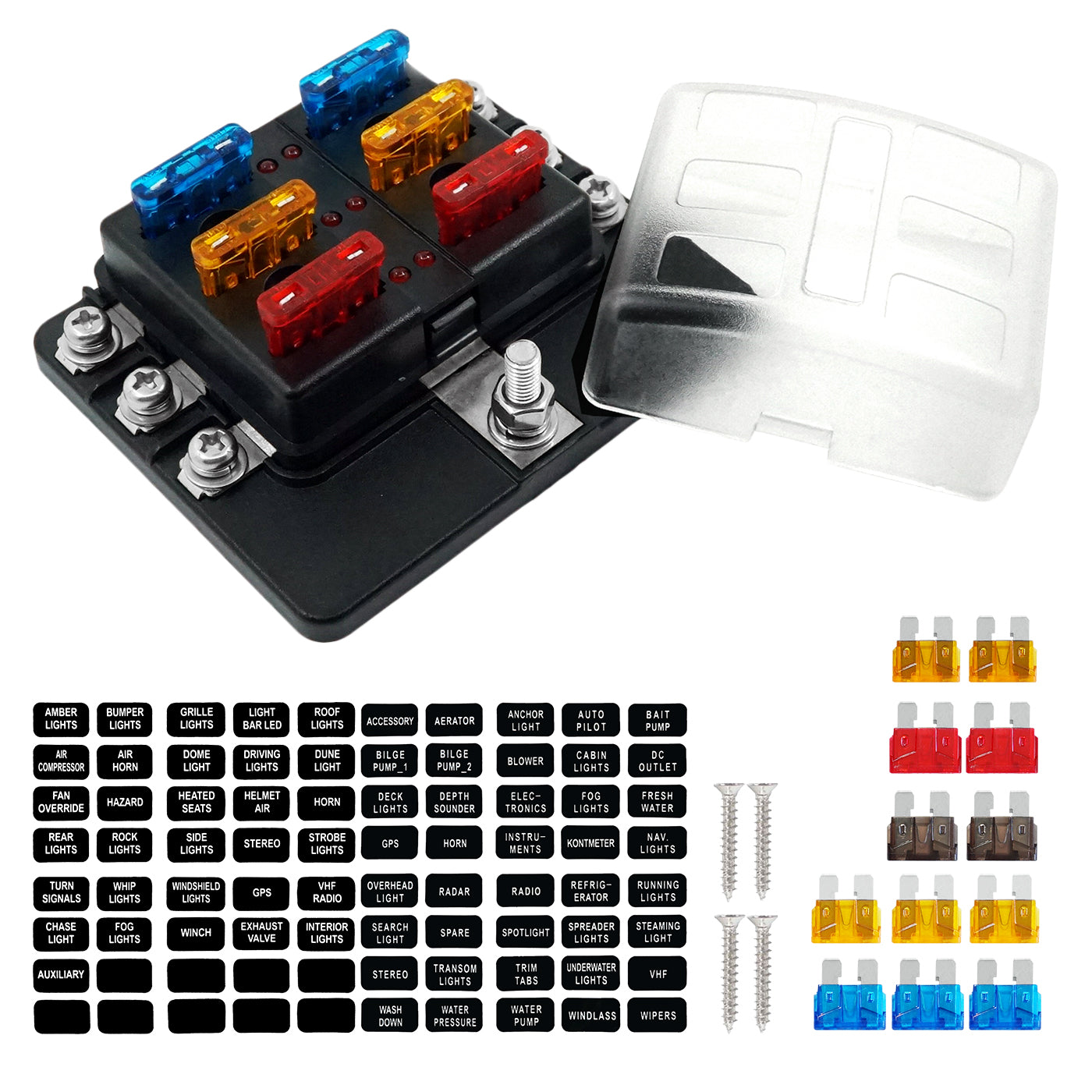

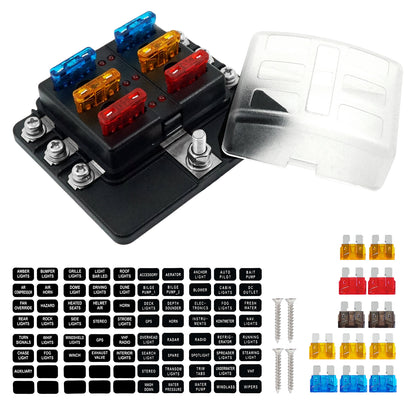

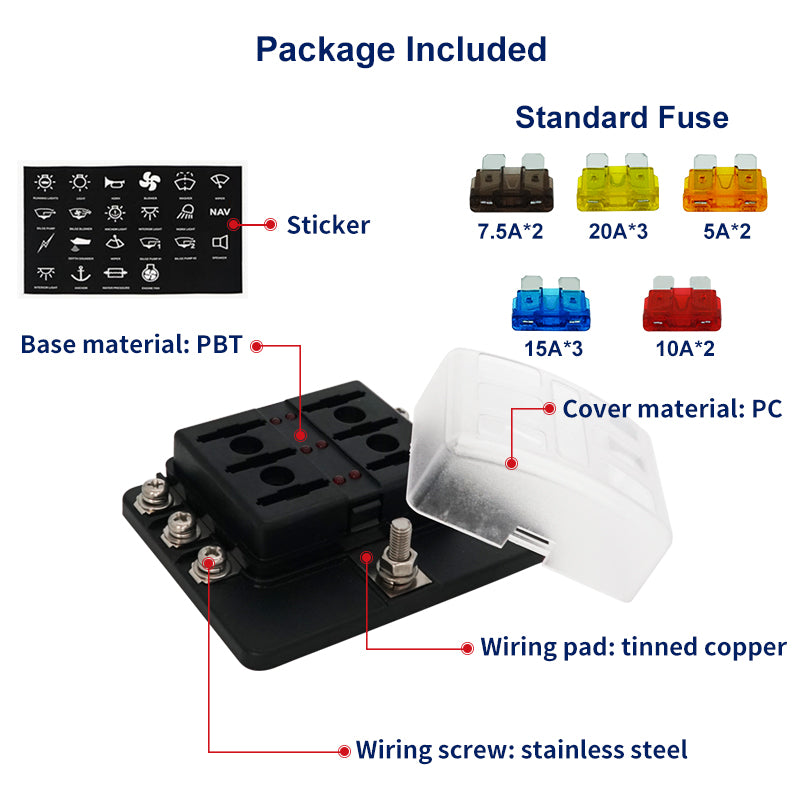

Package:

1 * 6-Way Fuse Box

2 * 5A Standard Fuse Blade

2 * 7.5A Standard Fuse Blade

2 * 10A Standard Fuse Blade

3 * 15A Standard Fuse Blade

3 * 20A Standard Fuse Blade

2 * Sticker Label

4 * Screw
