GenuineMarine 50/60A Resettable Surface Mount Thermal Circuit Breaker Red Switch for Boat Yacht RV
Product Name: Thermal Circuit Breaker with Manual Reset
Characteristics: High Amp Switchable, Waterproof, Dust proof, Surface-Mount Circuit Breaker
Type: Red manual reset button, 50 Amp，60Amp
Specification: Embedded Installation, Housing is thermal plastic,Protective stud insulator included
Max Voltage: 42VDC
Max Current: 3000A
Stud Size: 1/4 inch

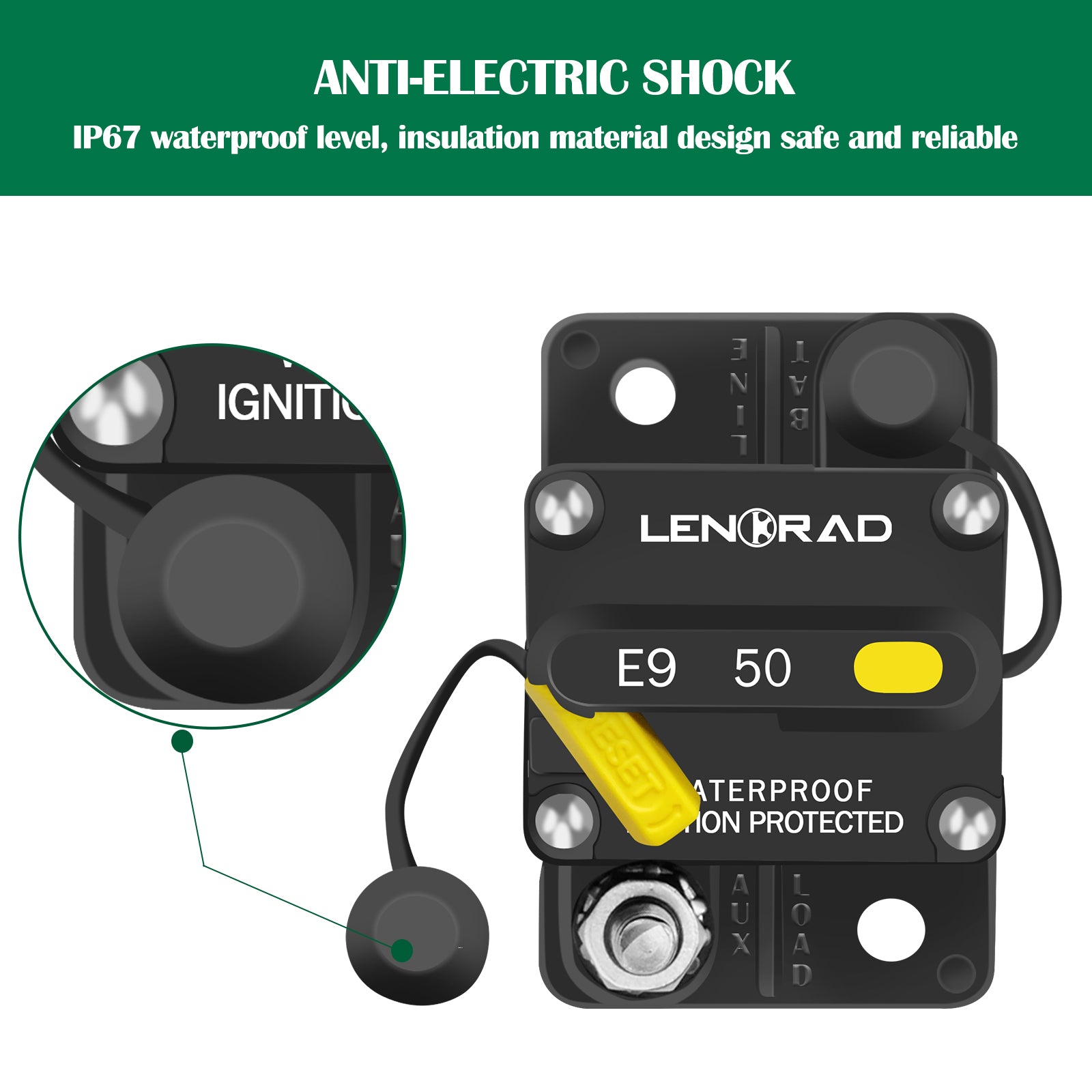

Dust Proof Grade: IP67
Standard: Meet S.A.E, J1625, J1171, UL1500 (Ignition Protected)
Operating Temperature: -32°C to 82 °C (-25°F to 180 °F)
Storage Temperature: -34°C to 149 °C (-30°F to 300 °F)
Use: Mainly used in ships, electric current overload protection car.
Effect: To prevent excessive current, The protection of electrical appliances.

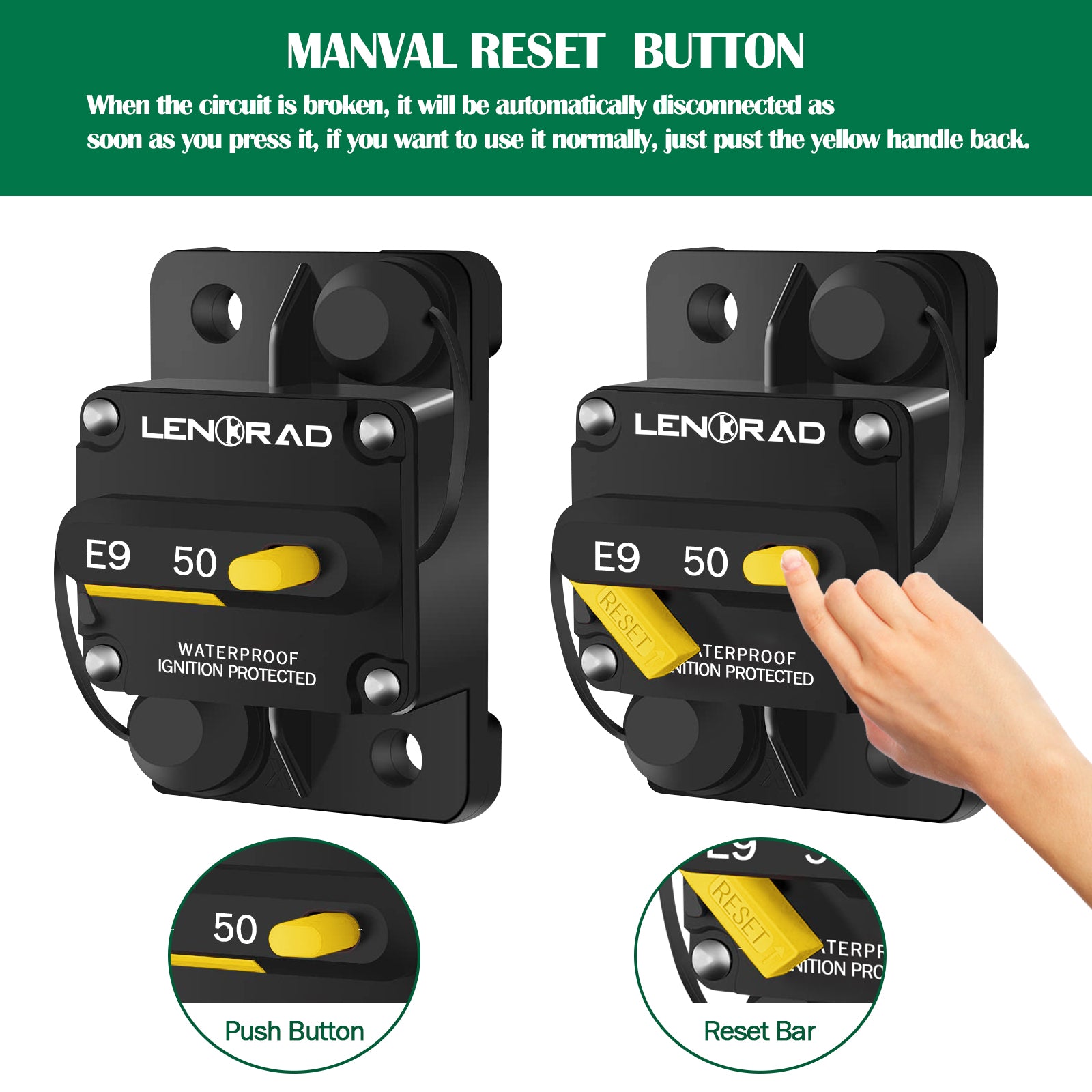

Operation method: Switch type power socket, convenient operation, circuit breaker, don't tear down,as long as click on their own disconnect to normal use, put off above the red button.
