GenuineMarine 12-Way Waterproof Boat Fuse Blo Damp-Proof Cover with Negative Bus Fuse Box Holder for Car Marine RV Truck DC 12-24V, Fuses Included


  • $29.99
    Unit price per
Shipping calculated at checkout.

Only 110 left!


Product Name: 12-Way Blade Fuse Box Standard Circuit Fuse Holder Box

Accepting Fuse: Standard Blade Fuse (ATO / ATC / ATS)

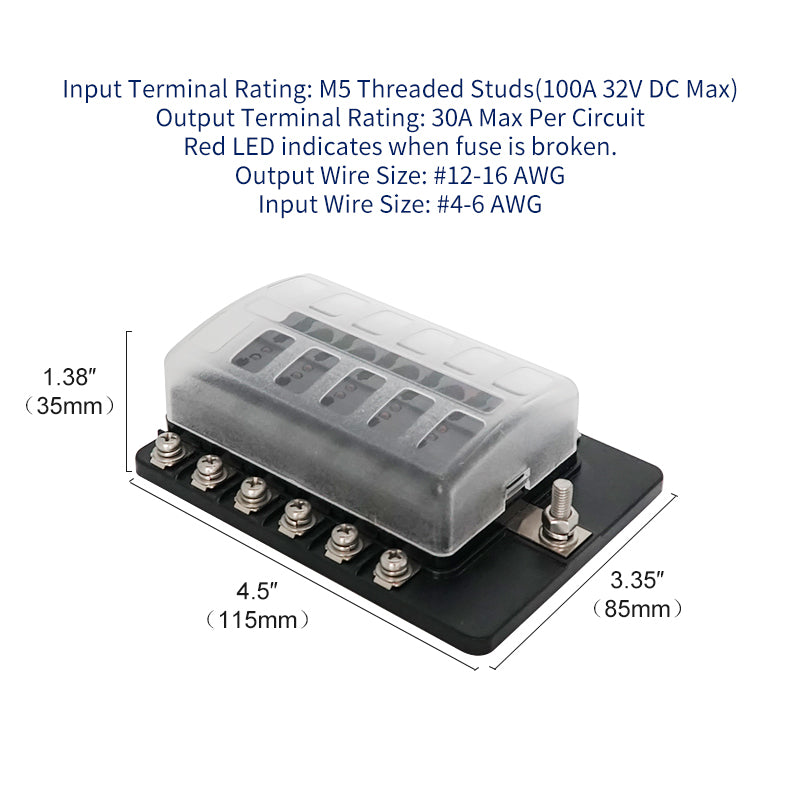

Dimension: 115*85*35mm(4.5*3.35*1.38 inches)

Connection Port: Spiral

Capacity: 100A

Maximum Per Current: 30A

Volt Rating: 32V DC

Number Of Fuse / Circuits Slots: 12

Colour: Black

Weight: 0.18KG

 How to replace the fuse?

1. Use the same size fuse. (If the fuse is too large, it may cause a fire when the circuit current is too large. If the fuse is too small, it will melt too easily, making the replacement more frequent.)

2. After selecting the replacement fuse, pull down the double-knife gate.

3. Then disconnect the power supply, open the plastic case and check for short circuits.

4. Replace the broken fuse with a screwdriver.

5. Change as it is, and install the casing to close.

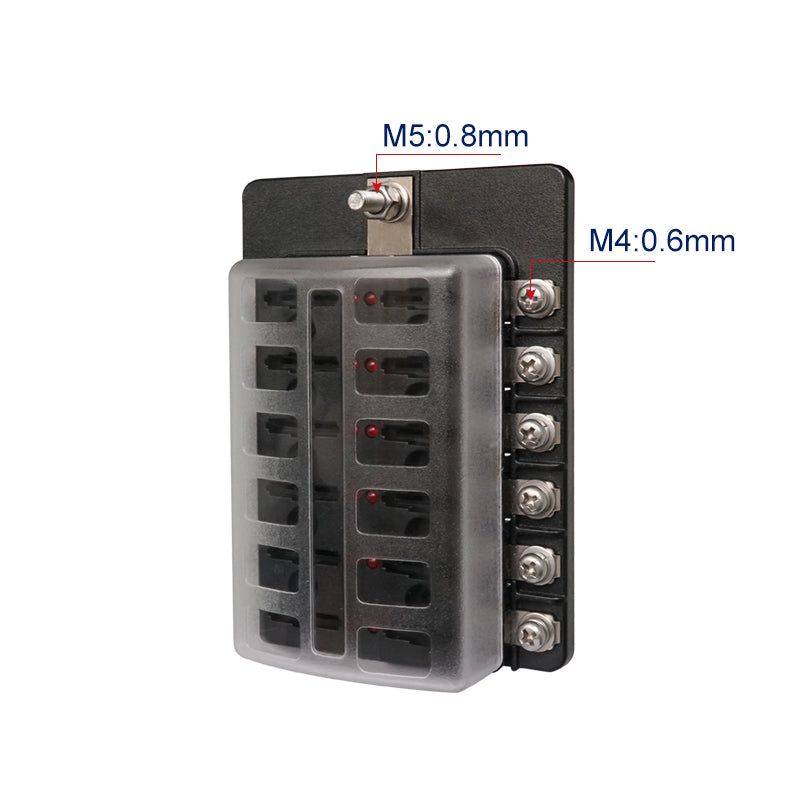

Input Terminal Rating: M5 Threaded Studs(100A 32V DC Max)

Input Wire Size: #4-6 AWG

Output Terminal Rating: 30A Max Per Circuit

Output Wire Size: #12-16 AWG

Red LED indicates when fuse is broken.

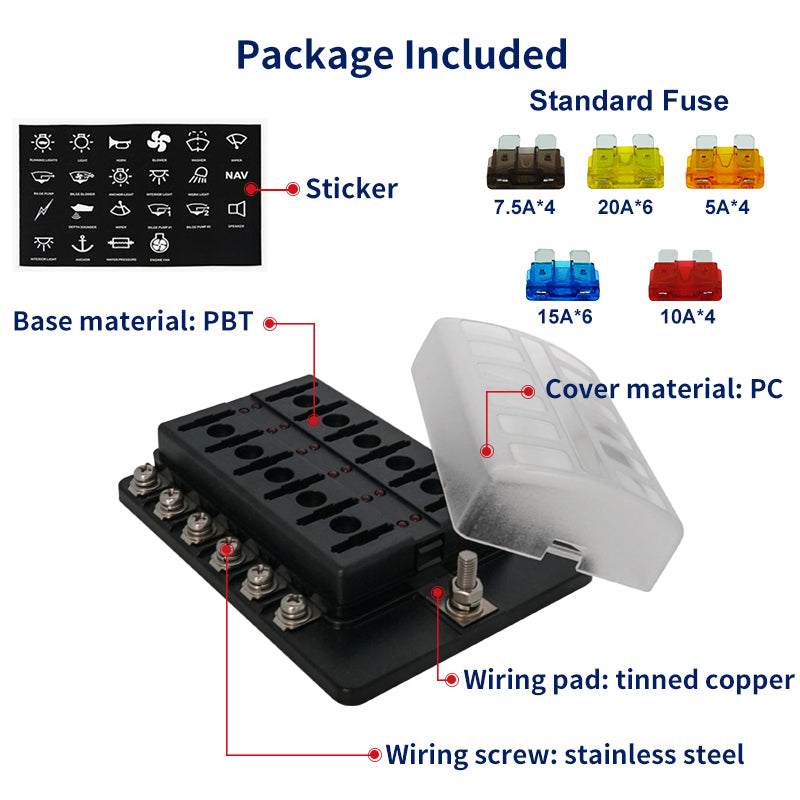

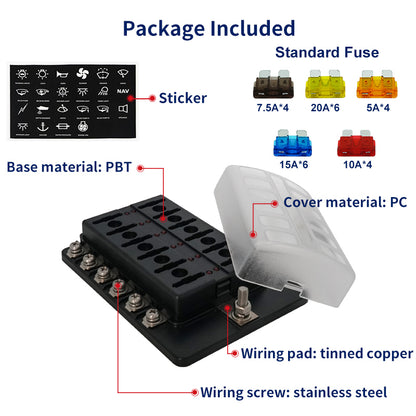

Housing Base: Polybutylene Terephthalate(PBT)

Cap: Polycarbonate(PC)

Terminal: Nickel Plated Copper

Screw: Stainless Steel

Label: Polypropylene(PP) x 40

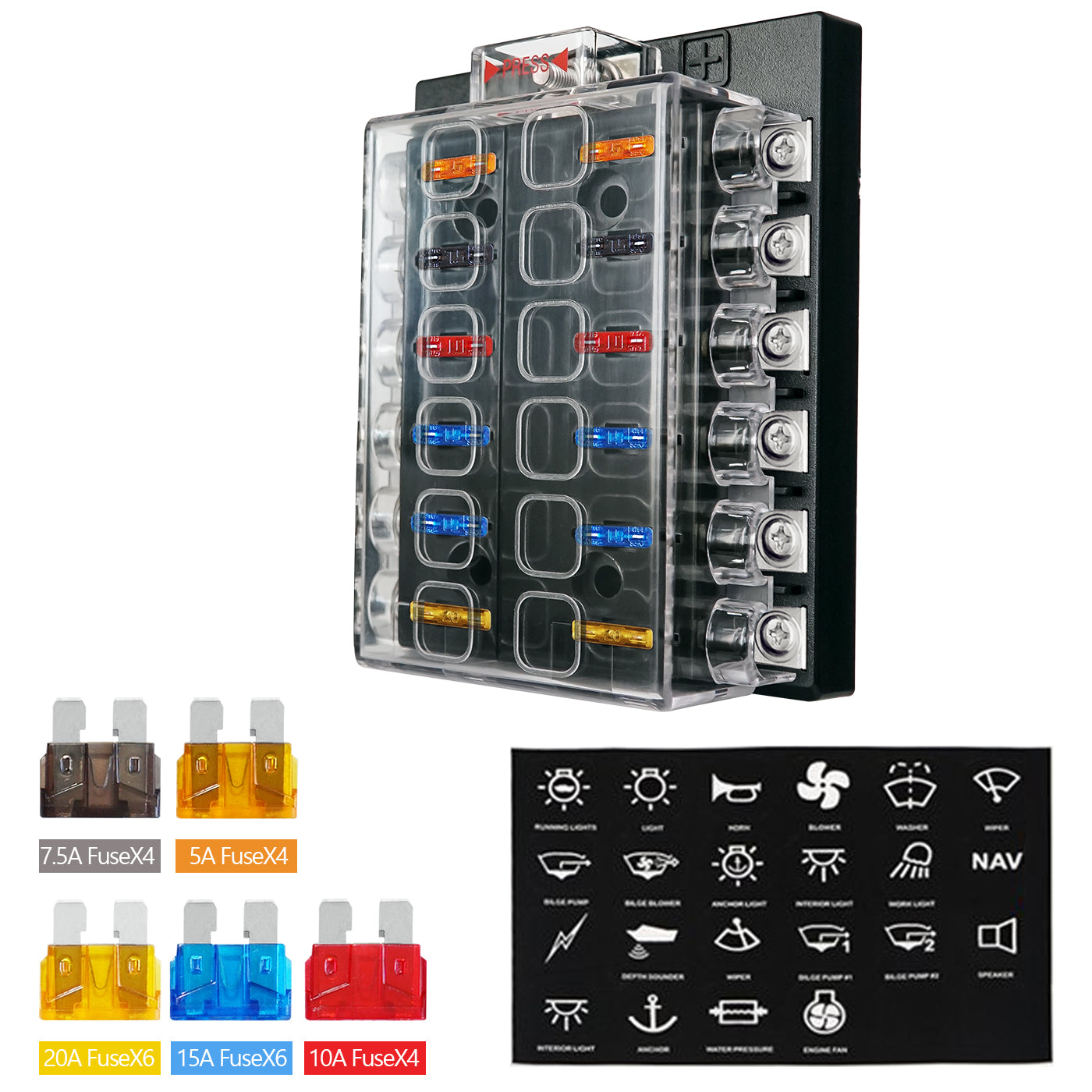

1 * 8-Way Fuse Box

4 * 5A Standard Fuse Blade

4 * 7.5A Standard Fuse Blade

4 * 10A Standard Fuse Blade

6 * 15A Standard Fuse Blade

6 * 20A Standard Fuse Blade

2 * Sticker Label

4 * Screw
