GenuineMarine-THALASSA Seaflo42 Series Diaphragm Pump 12V24V DC Booster Self-Priming Automatic Ship Water Pump for RV Yacht Boat


  • $86.85
    Unit price per
Shipping calculated at checkout.

Only 102 left!


Product Name: 42 series Diaphragm Pump

Product Size:

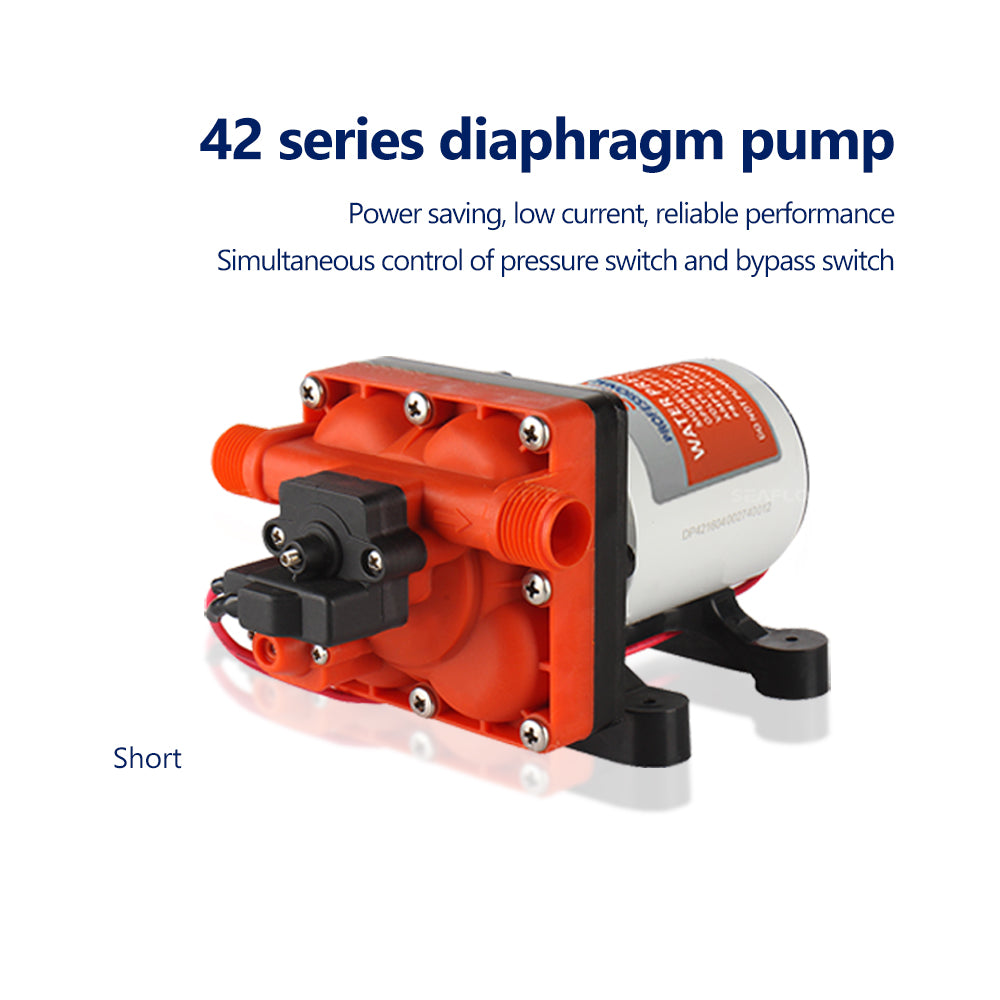

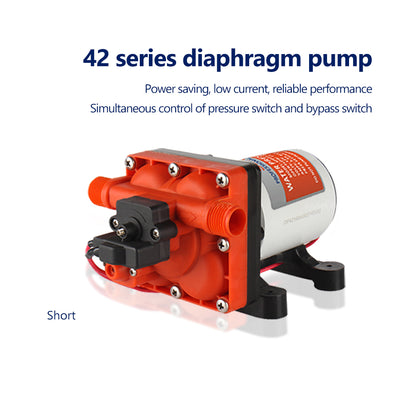

202.5*125*111mm (short version)

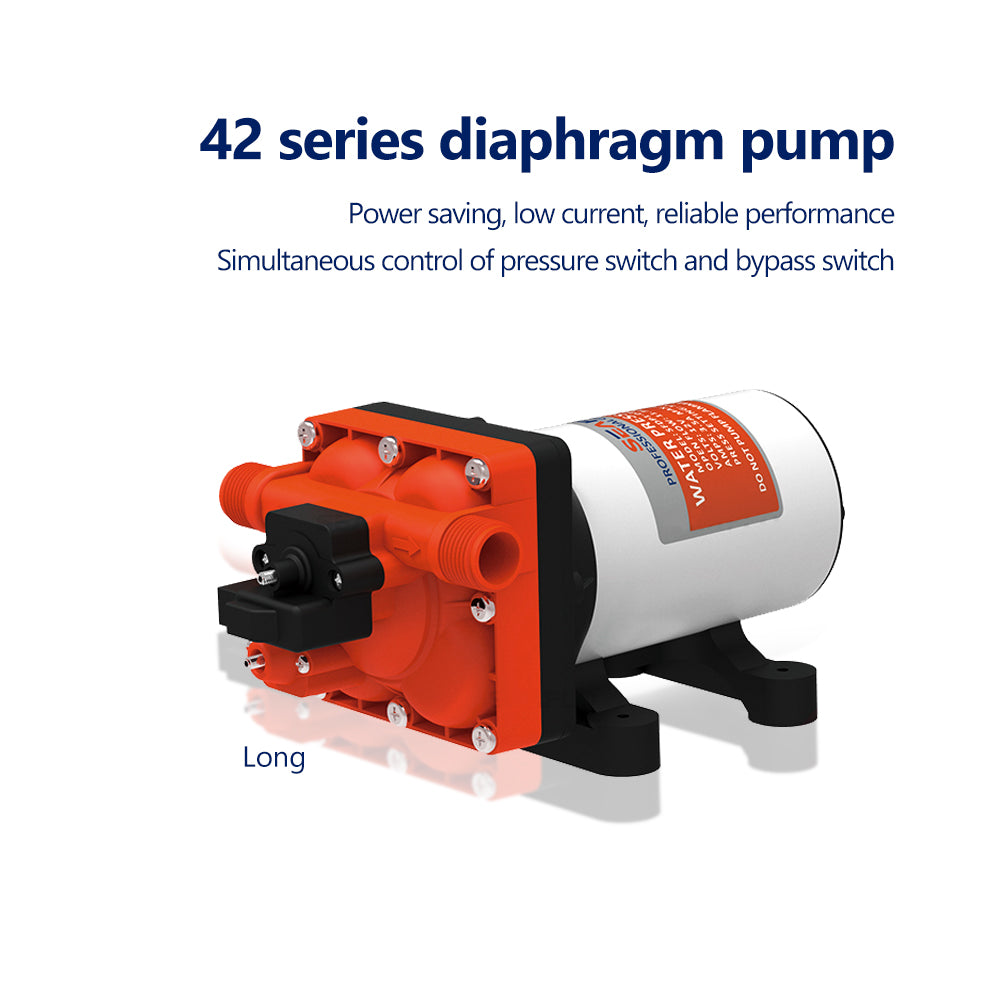

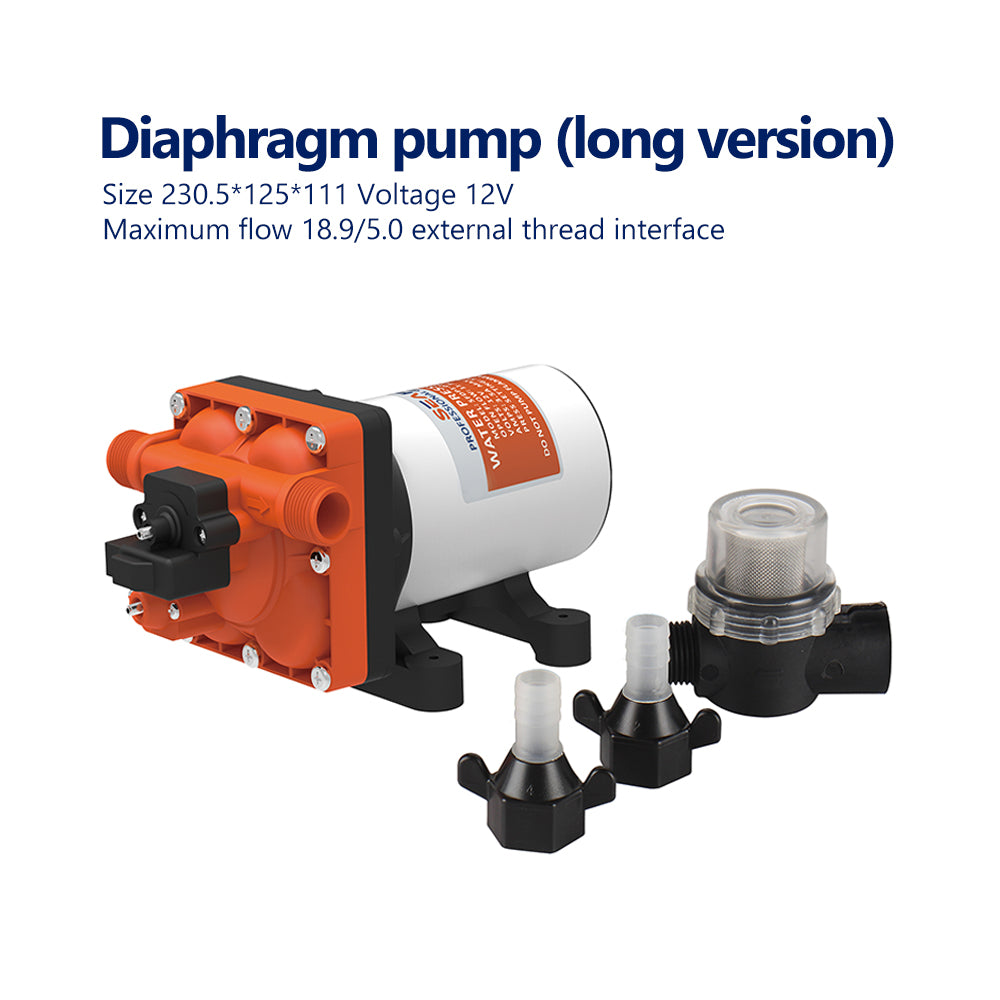

230.5*125*111mm (long version)

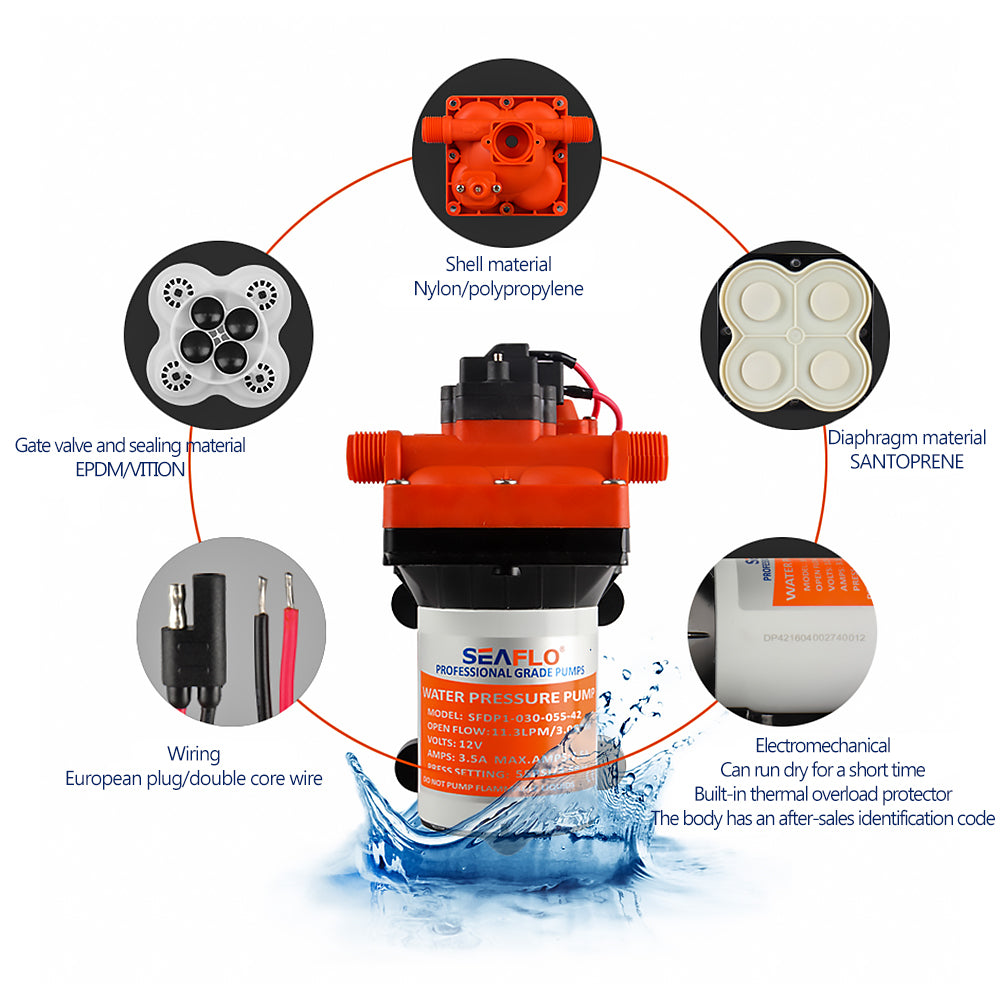

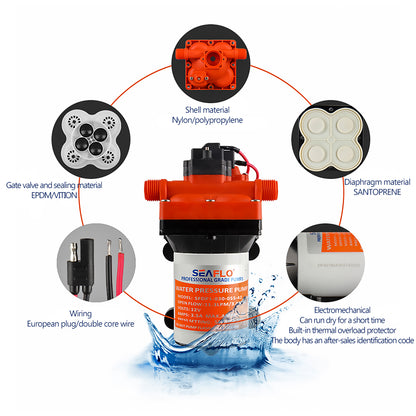

Shell Material: nylon

Valve Material: EPDM

Diaphragm Material: San Du Ping

Connection Method: European plug/double core wire

Interface Mode: 1/2''-14 threaded interface

Stop Pressure: 55PSI/3.8BAR

Control Method: pressure/reflux switch

SKU Rated voltage Maximum current(LPM/GPM) Working current Maximum current
BP1070(short) 12V 11.3/3.0 3.9A 7A
BP1072(long) 12V 18.9/5.0 7.5A 15A
BP1073(long) 24V 18.9/5.0 3.5A 7.5A


42 series Diaphragm Pump Advantages:

✔ The newly designed water pump is equipped with a high-efficiency motor, the overall volume is smaller and the operation is quiet

✔ Unique pump cavity structure can achieve strong water output performance at lower power

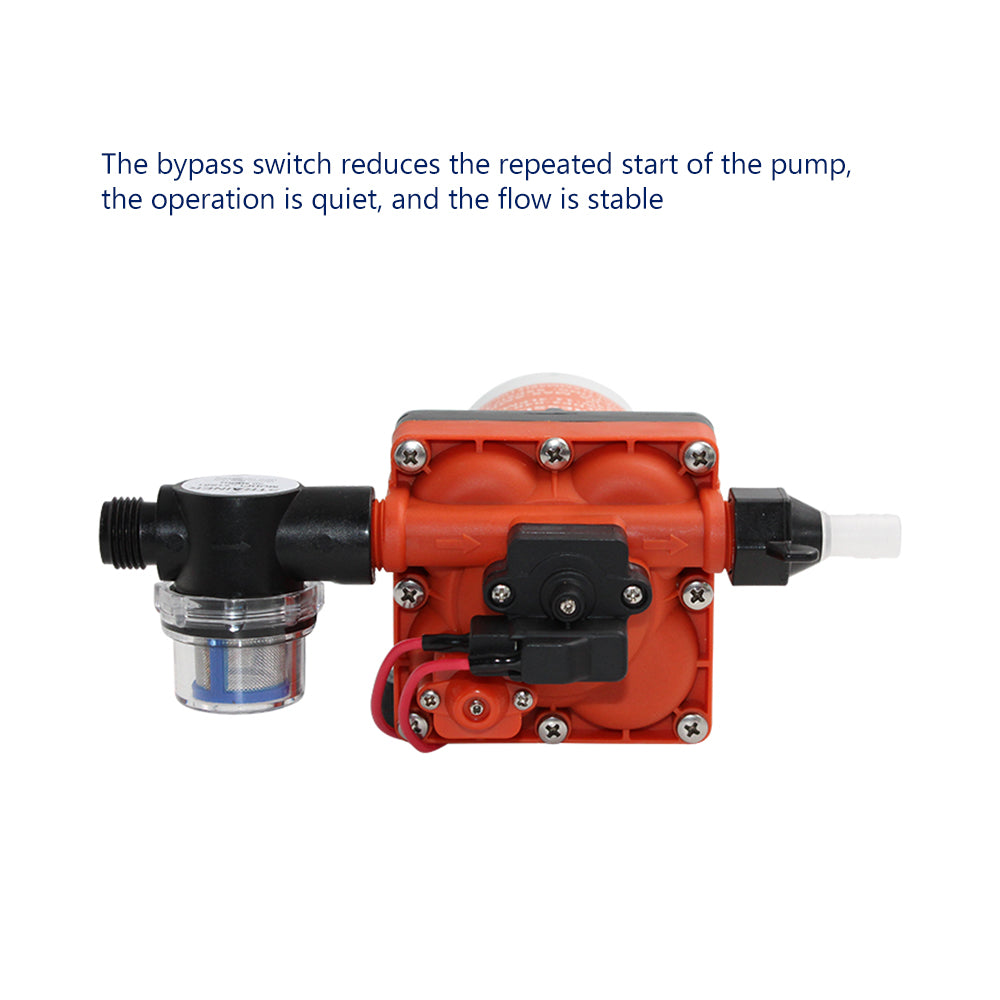

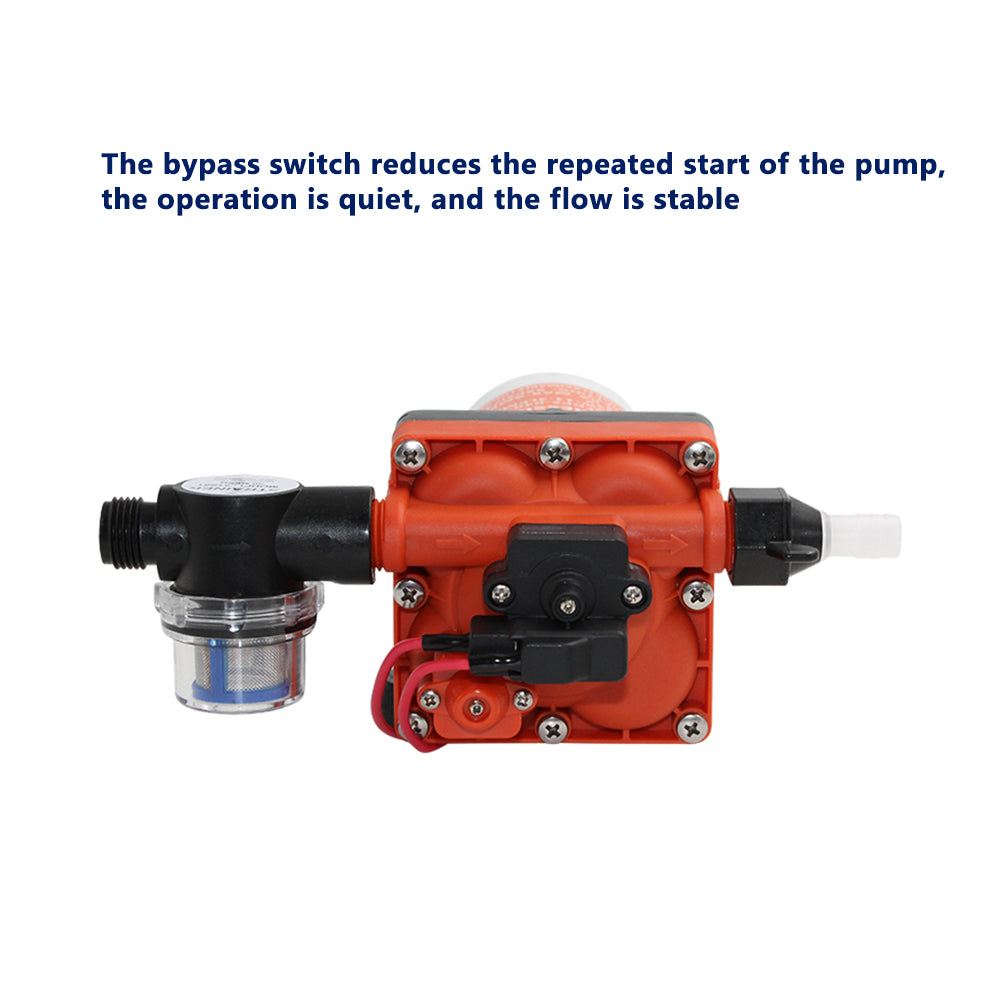

✔ The bypass function can greatly reduce the number of switch starts, avoid the phenomenon of power tripping, and make the water flow stable, and the water can be discharged normally when it is opened or half-opened.

✔ Small size, quiet operation, intelligent switch combination

✔ Anti-vibration mounting feet can minimize vibration and reduce noise even on hard surfaces

Suitable for RV, Yacht, Water purifier, Solar water systemetc.

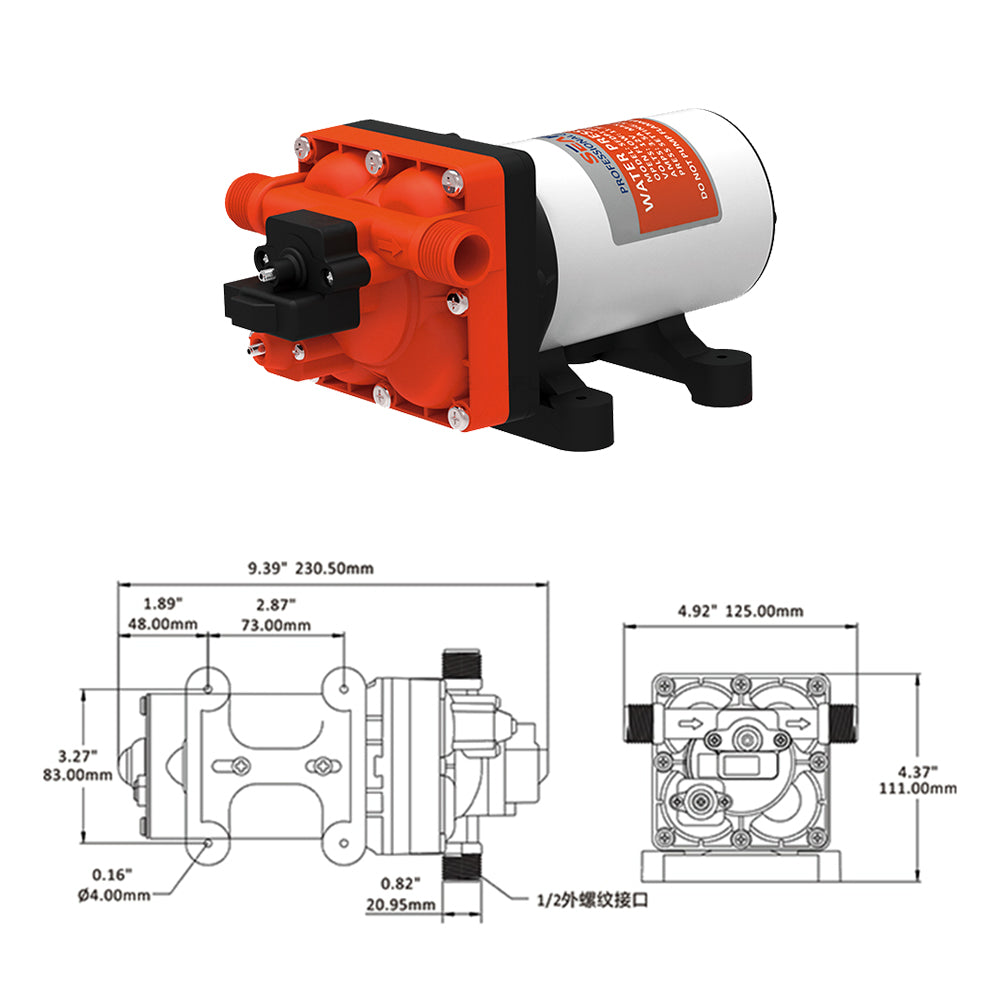

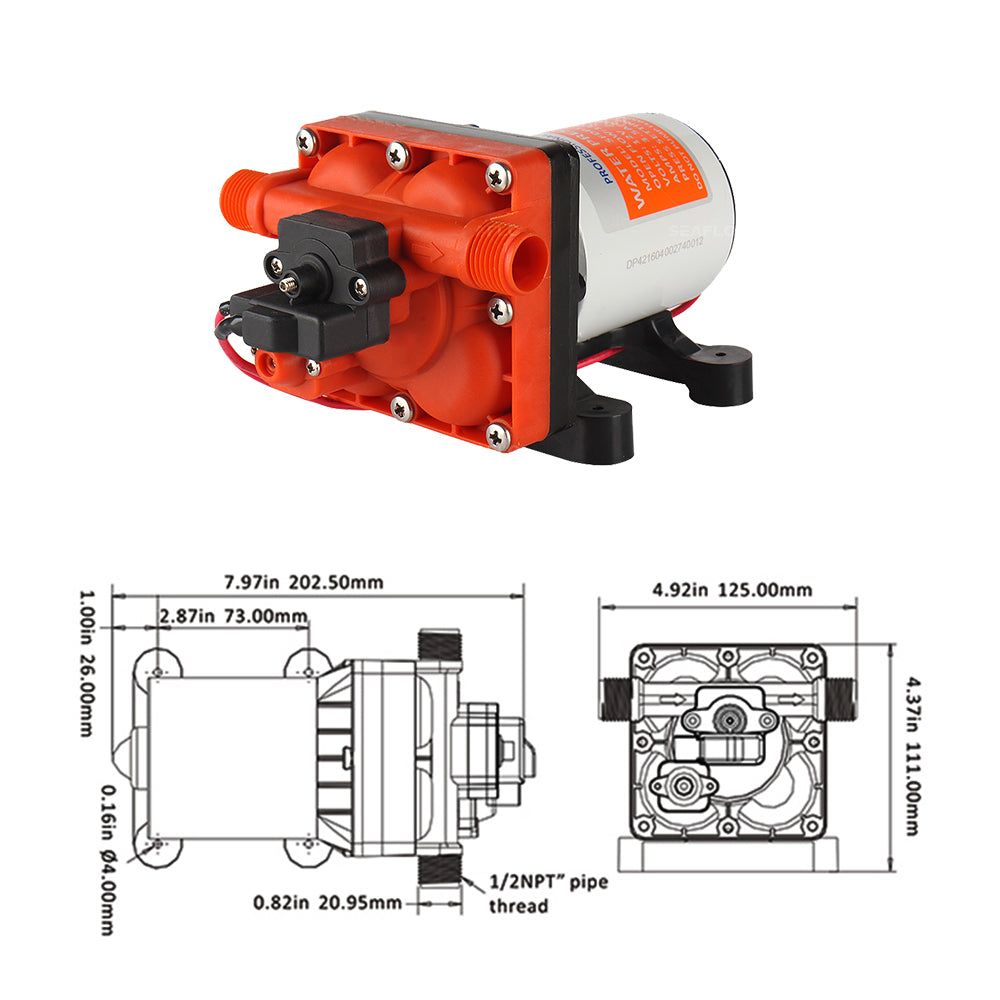

Please Know: Check out the dimension image and make sure it fits your application. Thank you!
