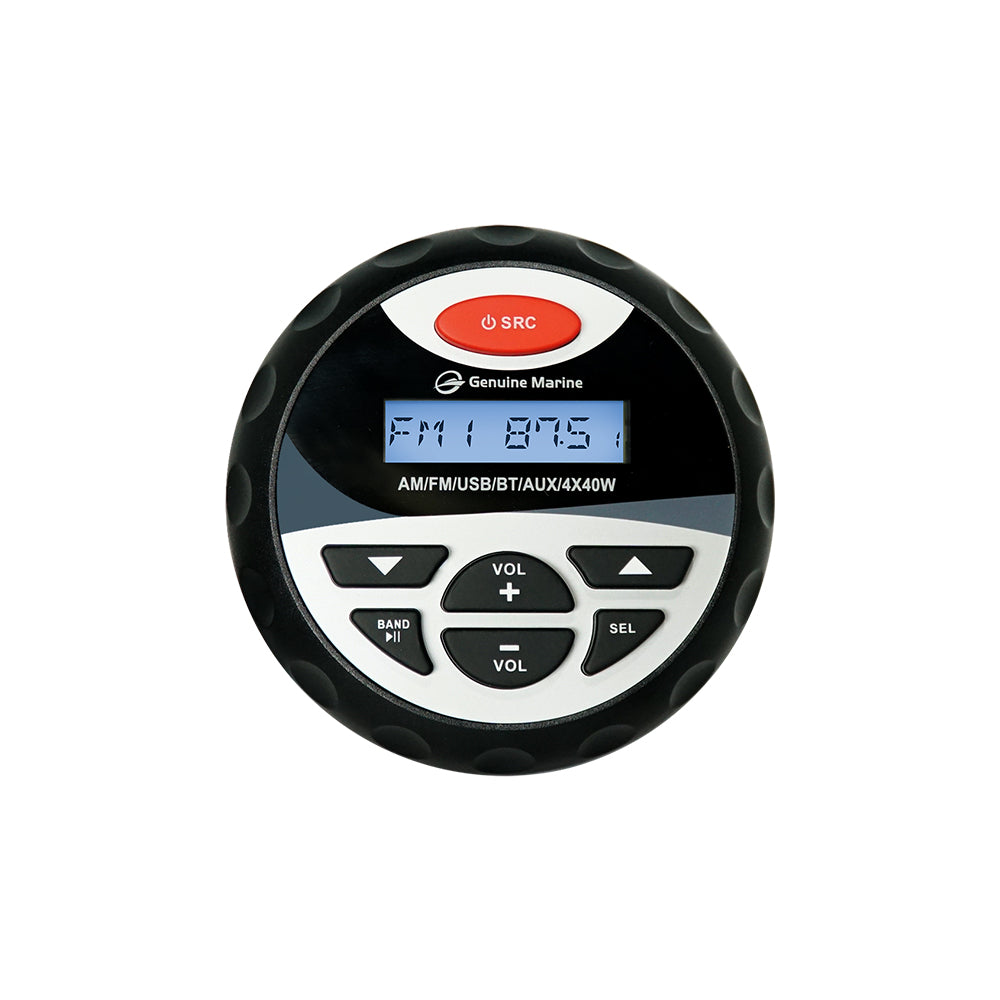

GenuineMarine-THALASSA IP65 Bluetooth Stereo, MP3/USB AM/FM Radio, Waterproof Digital Media Stereo Receiver with MP3 Player on Boats Yacht RVs
Product Name: Waterproof MP3 Player
Product size: 104*104*87mm
Waterproof rating: IP65
Hole size: 80mm
Product power: 4*40W
Product voltage: 12V
Working temperature: -10 to 50℃
Bluetooth support: version 3.0
Packing size: 193*129*11mm
Product packaging gross weight: 0.6kg
FM tuner range: 87.5MHz-108MHz (EUR)
AM tuner range: 522KHZ-1620KHZ usable sensitivity: >5uvuSB music player
Signal to noise ratio: 55dB
Frequency response: 50HZ-20KHZ
A/D conversion filter: 16 bits
USB storage capacity: up to 16GB MP3 Player Advantages:
✔ 1.8" Full View Positive Display, Clear under Strong Sunshine
✔ 40 Watts x 4 Max Power, Balance/Fader/Bass/Treble and Preset built-in EQ
✔ Bluetooth Audio Streaming, play USB, MP3, FM/AM and Smart Phones
Before cutting any panel, always make sure that there is enough clearance behind the panel, and that the wiring harness, fuse, movable link or any other key components will not be damaged due to the location you choose, and there will never be any damage to the hull when the opening is cut. risk.
If necessary, carefully remove the interiotrim panel and prepare the installation location. Arrange the wiring harness away from sharp edges and make sure that it does not squeeze or pierce the wiring harness during reassembly.
- Determine the installation position on a plane with a large enough rear clearance (80mm) and allow access. Before proceeding, please make sure that the installation can be completed successfully! 2. A round hole with a diameter of 81 mm is required.
As shown in the picture, cut the hole and insert the player.
- Insert the player into the opening, making sure that the gasket behind the surface of the player completely rests on the mounting surface.

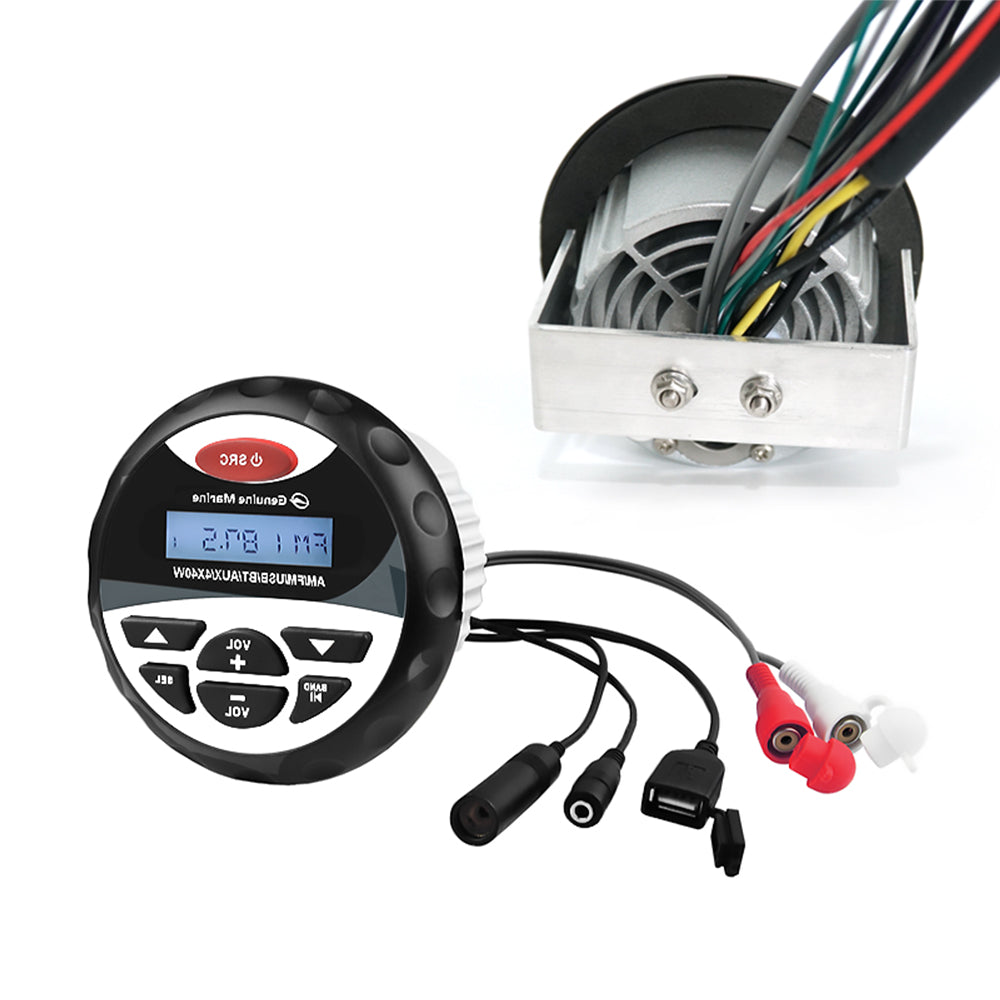

- Place the bracket on the rear of the player, and pass the two studs on the rear of the player through the two holes on the mounting bracket (as shown below). Tighten the 7mm hex nut onto the bracket, and again make sure that the gasket is tightly sealed to the front of the mounting part to avoid pinching the cable.
Note: Ensure that all lines (including USB, AUX and antenna connections) are tied up with tape to increase waterproof protection.
Application: Yacht, RVS, Caravan, etc.

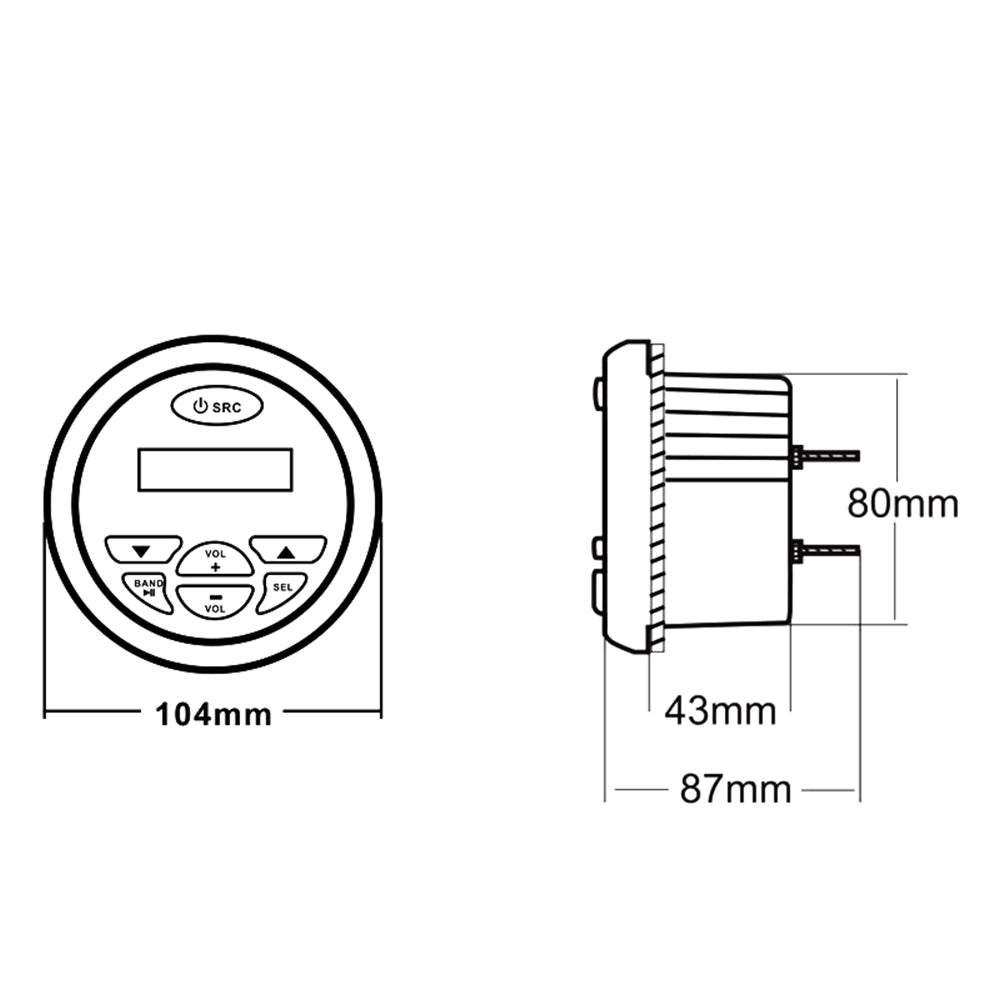

Please Know: Check out the dimension image and make sure it fits your application. Thank you!
We solemnly promise that the product can be guaranteed for 1 year!!
