Information:

Specification: 12V /24V

Resistance: 0~190Ω/240~33Ω

Hole size: 52MM

Material: PVC, strong waterproof

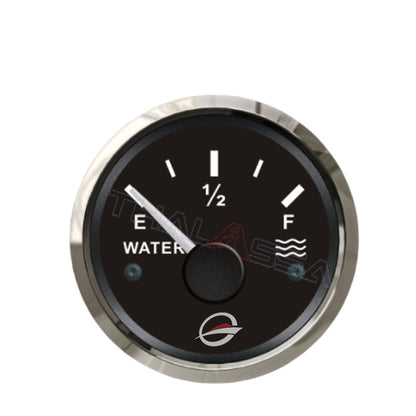

KUS water meter Advantages:

✔ The pointer is driven by a cross coil, and the product is highly accurate

✔ Good durability and shock resistance, anti-fog function

✔ The pointer is made of engineering plastic, the frame is made of 316 stainless steel or plastic, and the face mirror is made of anti-fog curved glass, which has high strength, anti-deformation, moisture-proof and anti-rust

✔ The metal interface part is made of refined copper material, and the surface is galvanized to prevent oxidation and rust while ensuring good conductivity

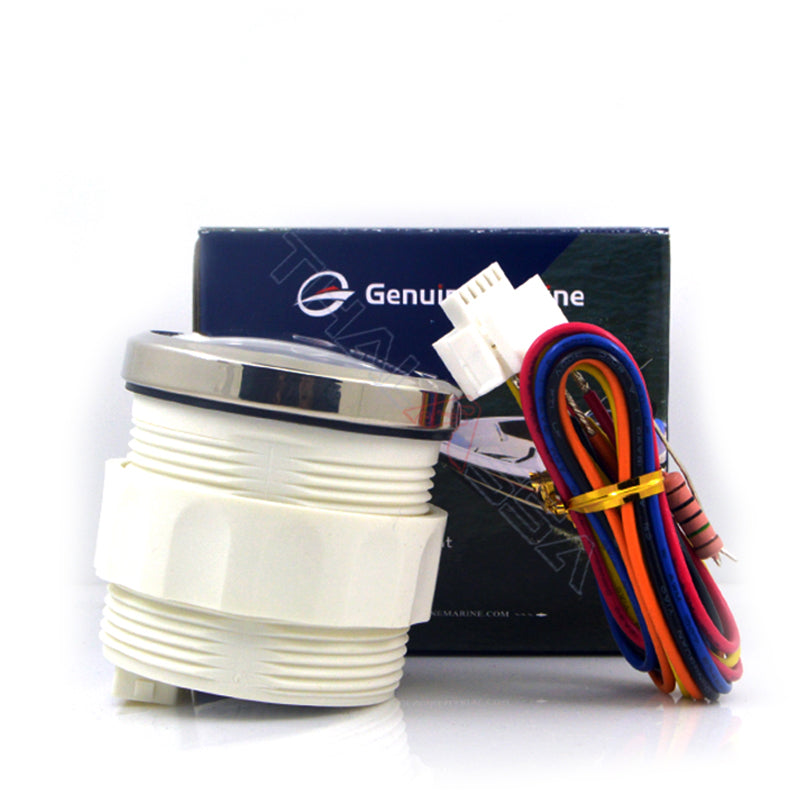

 Instructions for use:

The yellow wire to yellow backlight

The orange wire is connected to the red backlight

The black wire is connected to the sensor signal

The red wire is connected to the positive pole of the power supply

The blue wire is connected to the negative pole of the power supply

If it is a 12V power supply, no need to connect this resistor

If it is a 24 volt power supply, a resistor needs to be connected to the positive pole

Suitable for Anywhere, RV, yacht room, living room and truck, etc.

Please Know: Check out the dimension image and make sure it fits your application. Thank you!
